• P235/70R16 all-season OWL tires
• 16" aluminum wheels
• Spare tire, mini space saver
• Wheel nut wrench & jack
• Roof rack rails
• Body color front/rear fascias

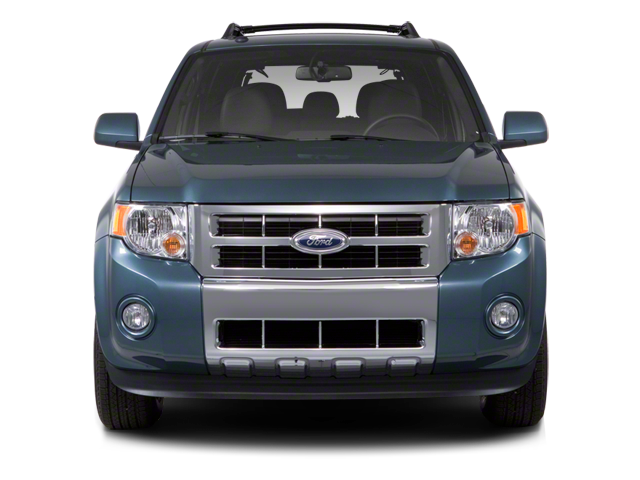

• Chrome grille w/lower body color
• Auto-lamp headlamps
• Fog lamps
• Black pwr exterior mirrors -inc: integrated blind spot mirror
• Privacy glass
• Variable intermittent windshield wipers
• Rear 2-speed wiper w/washer
• Black door handles
• Body color liftgate

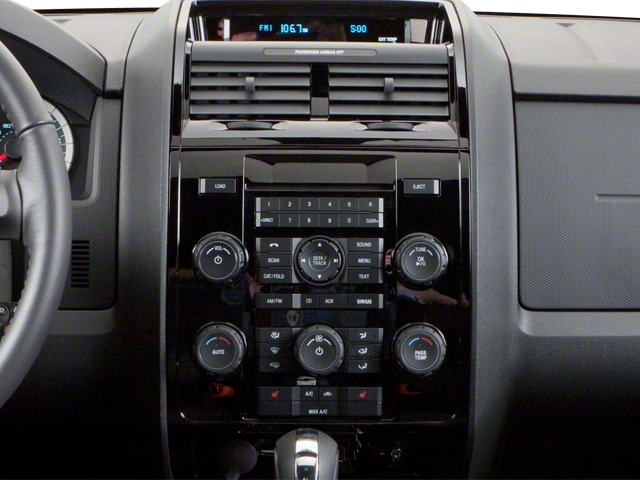

• AM/FM stereo w/CD player -inc: MP3 playback, audio input jack, speed sensitive volume, (4) speakers
• SIRIUS satellite radio -inc: 6-month subscription *N/A in AK or HI*

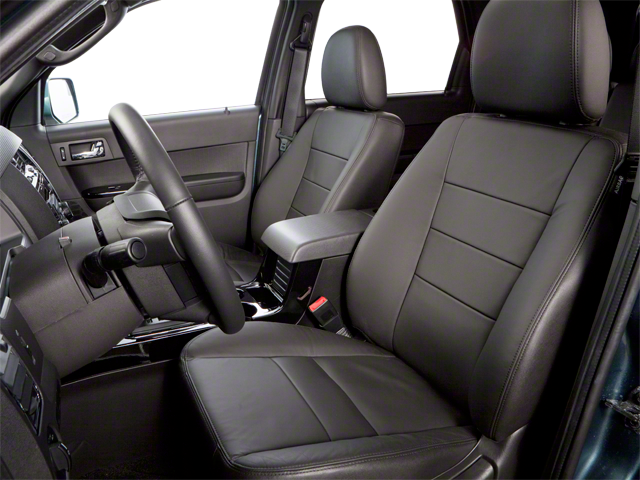

• Premium eco-friendly cloth front bucket seats -inc: 6-way pwr driver seat
• 2nd row 60/40 split bench seat -inc: tip-fold-flat latch
• All-position head restraints
• Black center stack

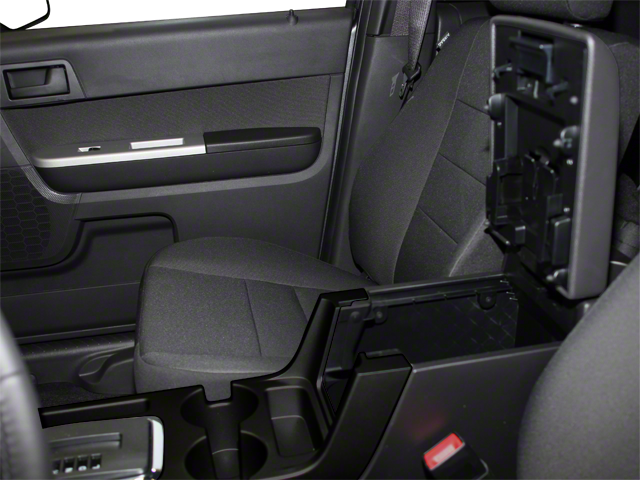

• Floor console -inc: storage bin, removable interior bin, (4) cup holders
• Front/rear floor mats

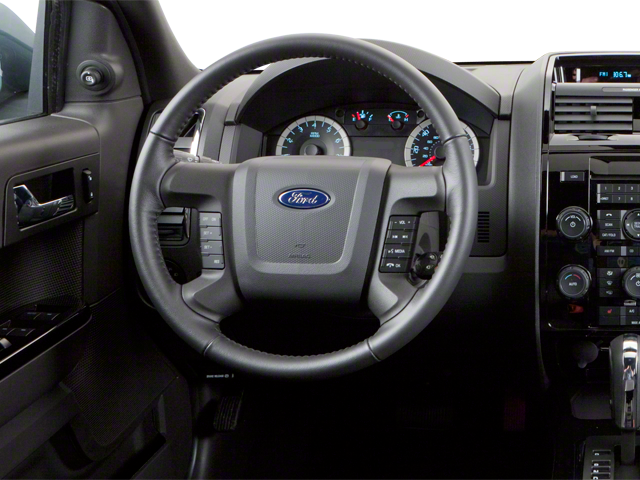

• Leather-wrapped tilt steering wheel w/speed controls & audio controls

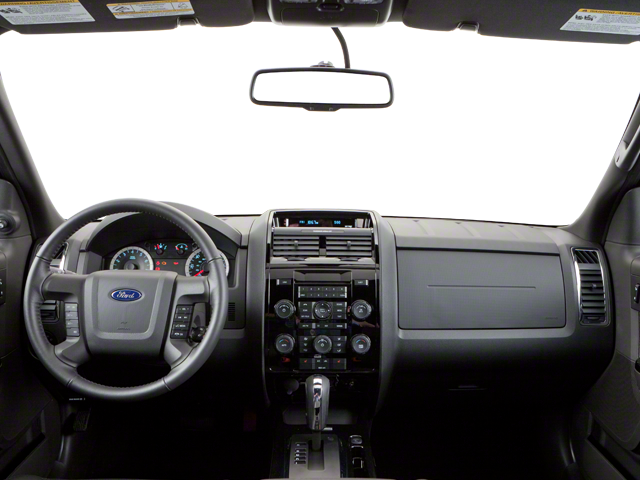

• Instrument cluster -inc: message center, compass, outside temp display
• Ice blue illuminated gauge cluster

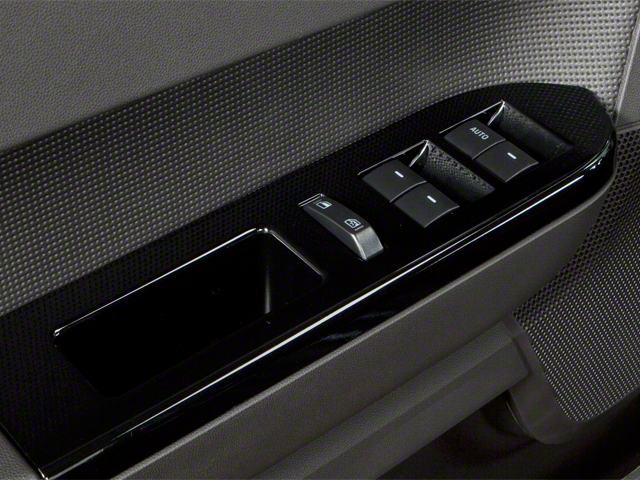

• Pwr windows w/1-touch driver down
• Pwr locks
• Remote keyless entry
• SecuriCode keyless entry keypad
• SecuriLock passive anti-theft system (PATS)
• Manual air conditioning
• Rear window defroster
• Pwr points -inc: (1) 1st row, (1) 2nd row
• Driver & front passenger side map pockets
• Electrochromic rearview mirror -inc: compass
• Overhead console
• Sunvisors w/dual illuminated mirrors
• Lighting -inc: center dome lamp, map lights, rear cargo area light
• Illuminated entry
• 2nd row coat hook

• 4-wheel anti-lock brakes
• AdvanceTrac w/Roll Stability Control (RSC)
• Dual stage driver & front passenger airbags -inc: front passenger occupancy sensor
• Side airbags
• Safety Canopy -inc: rollover sensor
• Personal Safety System
• All-position 3-point seat belts
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• Rear outboard LATCH child seat anchors & tethers
• Child safety rear door locks
• Tire pressure monitoring system (TPMS)

2.5L I4 DURATEC ENGINE

• (STD)

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 23
• EPA Fuel Economy Est - City (MPG): 20
• EPA Fuel Economy Est - Hwy (MPG): 27
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 110
• Cooling System
• Total Cooling System Capacity (qts): 6.4
• Weight Information
• Base Curb Weight (lbs): 3477
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Multi-link
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 0.35
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 10.0 x 1.65
• Tires
• Front Tire Order Code: T63
• Rear Tire Order Code: T63
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 17.5
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 36.7
• Turning Diameter - Wall to Wall (ft): 40.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 16.5
• Exterior Dimensions
• Wheelbase (in): 103.1
• Length, Overall (in): 174.7
• Width, Max w/o mirrors (in): 71.1
• Height, Overall (in): 67.8
• Track Width, Front (in): 60.7
• Track Width, Rear (in): 60.2
• Min Ground Clearance (in): 8.4
• Rear Door Opening Height (in): 33.5
• Rear Door Opening Width (in): 43.2
• Liftover Height (in): 29.6

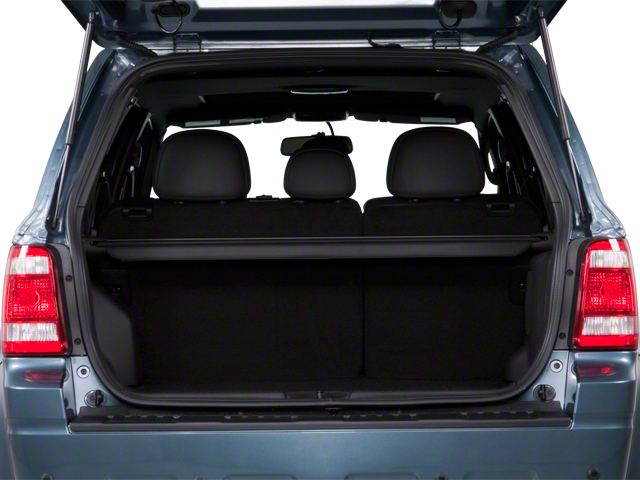

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 66.7
• Cargo Area Length @ Floor to Seat 2 (in): 35.0
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 40.7
• Cargo Box (Area) Height (in): 37.9
• Cargo Volume to Seat 1 (ft³): 67.2
• Cargo Volume to Seat 2 (ft³): 31.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 99.5
• Front Head Room (in): 40.4
• Front Leg Room (in): 41.6
• Front Shoulder Room (in): 56.6
• Front Hip Room (in): 53.3
• Second Head Room (in): 39.2
• Second Leg Room (in): 35.6
• Second Shoulder Room (in): 55.9
• Second Hip Room (in): 49.1
• Summary

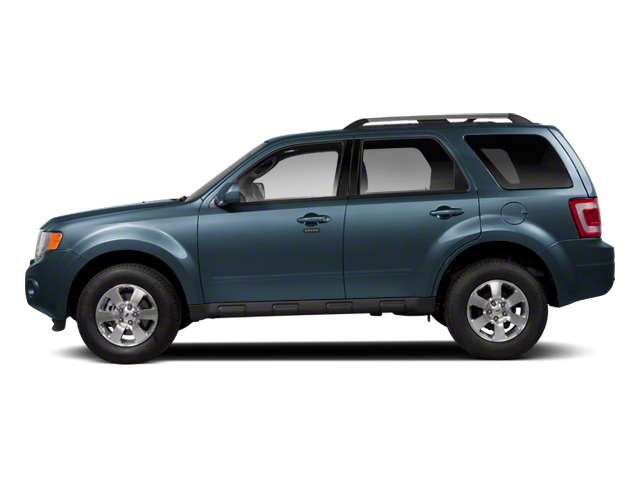

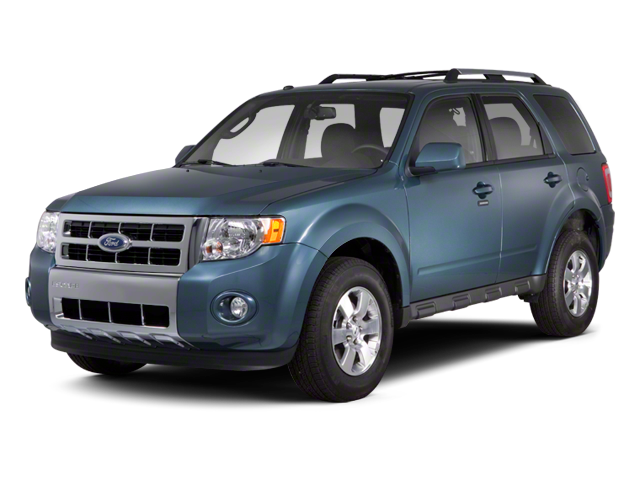

• Vehicle Name: Ford Escape
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 5
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.5
